architecture

• lateinisch: architectūra
• griechisch:
  • ἀρχή (arché): anfang, ursprung, grundlage, das erste
  • τέχνη (téchne): kunst, handwerk (auch tectum, lateinisch für gebäude)
• handwerkliche beschäftigung und ästhetische auseinandersetzung des menschen mit dem gebauten raum
• planvolles entwerfen, gestalten und konstruieren von bauwerken
• wechselbeziehung zwischen mensch, raum und zeit

sources: https://de.wiktionary.org/wiki/Architektur und https://de.wikipedia.org/wiki/Architektur

architecture in it

• Umfasst alle statischen und dynamischen Aspekte
• Umfasst Gebiete wie:
  • infrastruktur (hardware, location, network)
  • software
  • technologies
  • interfaces
  • IT-business functions and processes
  • architecture-management (configuration- and capacity planning, load balancing, backup, availability, reliability, disaster planning etc.)

sources: https://de.wikipedia.org/wiki/IT-Architektur

definition

• Beschreibt die grundlegenden Komponenten
• Zeigt das Zusammenspiel innerhalb eines Systems auf
• Ist eine Zerlegung des Ganzen in einzelne Architekturkomponenten

„eine strukturierte oder hierarchische Anordnung der Systemkomponenten sowie Beschreibung ihrer Beziehungen“.

Helmut Balzert: Lehrbuch der Softwaretechnik

characteristics

• multitude of stakeholders
• separation of concerns
• quality-driven
• recurring styles
• conceptual integrity
• cognitive constraints

types of architecture

• enterprise architecture DE / EN
• solution architecture EN
• software architecture DE / EN
• integration architecture DE / EN
• data architecture DE / EN
• security architecture DE / EN
• infrastructure architecture DE / EN

levels of architecture

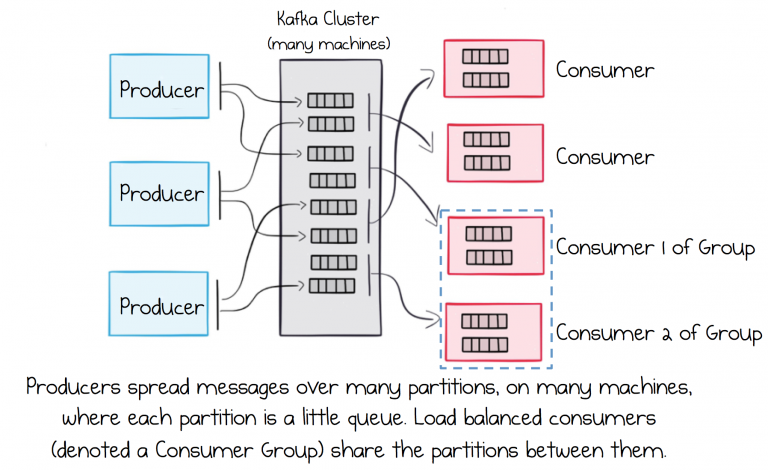

event driven architecture	hexagonal architecture

conclusion

• is important, if you don't want to have unexpected troubles
• has to work on all level
• there isn't a correct or a wrong architecture
• no decision about selecting an architecture doesn't mean, you don't use any
• should be documented and up to date

software architecture patterns

some examples:

• service-oriented architecture
• multitier architecture
• model-view-contoller
• event-driven architecture
• broker pattern

sources: architekturmuster DE / EN

software design patterns

some examples:

• dependency injection
• observer pattern
• proxy pattern
• adapter pattern
• chain-of-responsibility pattern
• state pattern

sources: entwurfsmuster DE / EN

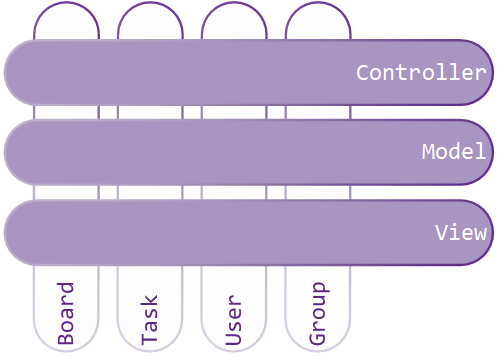

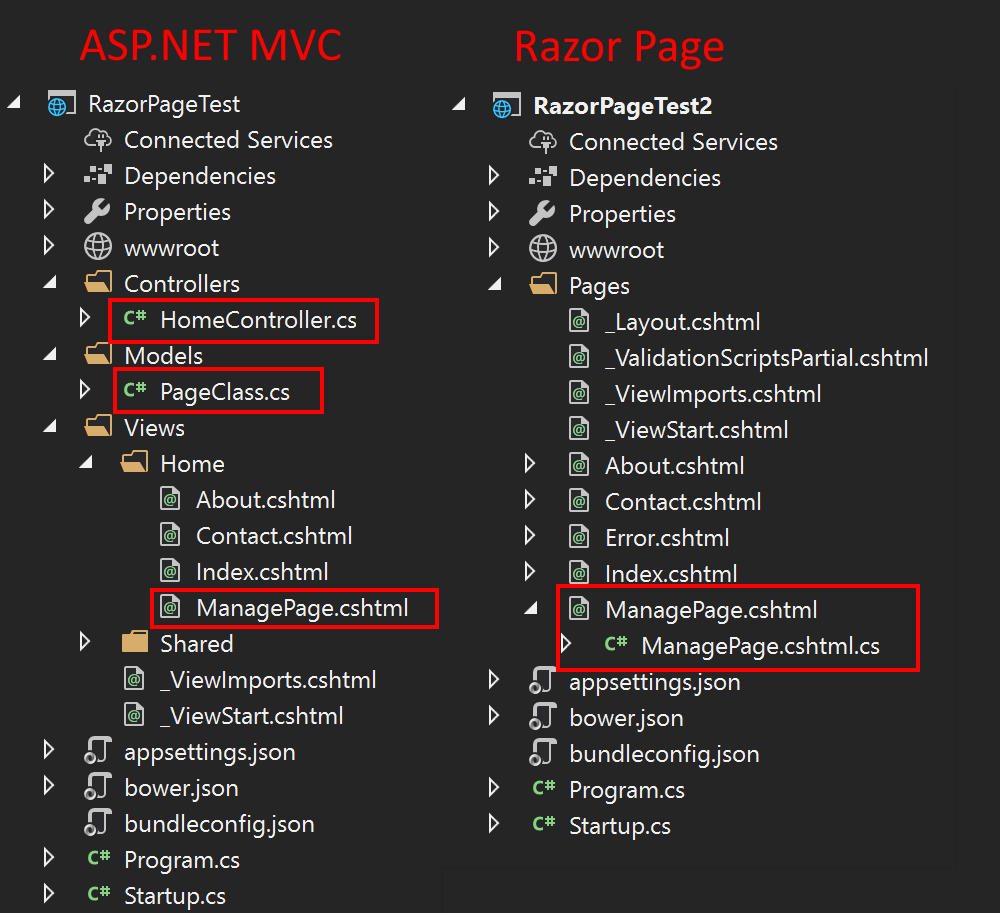

horizontal architektur

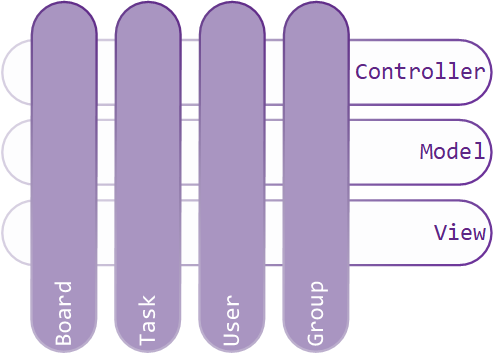

vertical architektur

history

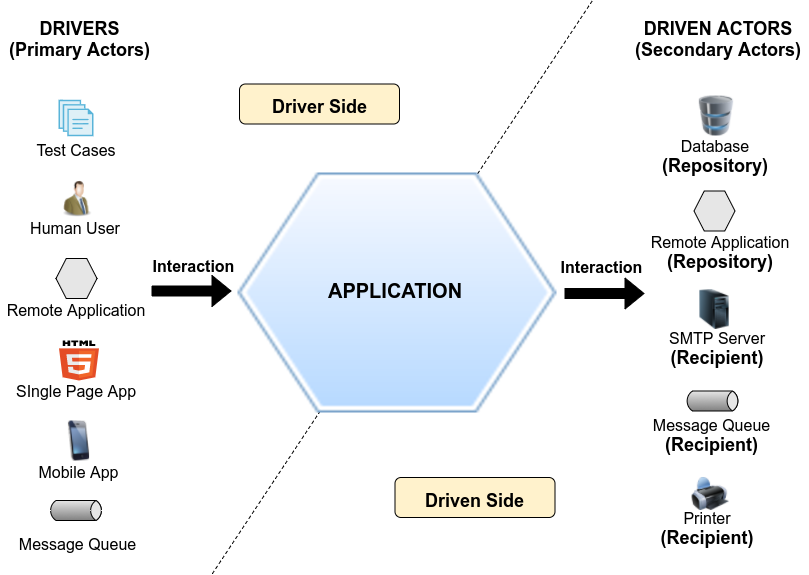

• 199X hexagonal architecture - alistair cockburn

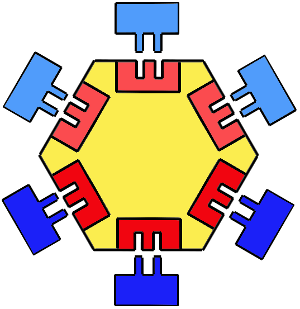

• 2005 ports and adapters - alistair cockburn
• 2008 onion-architecture - jeffrey palermo

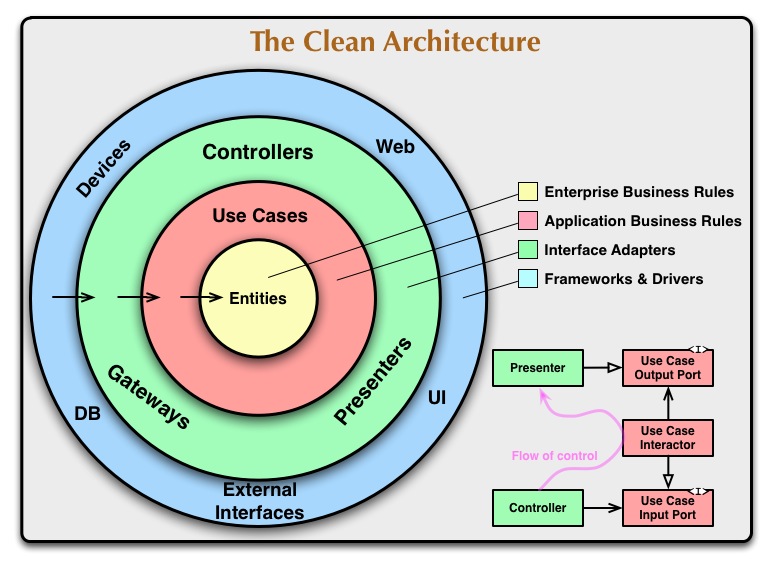

• 2012 clean-architecture - robert c. martins

components

source: dossier-andreas.net

dependencies

source: blog.cleancoder.com

data flow

source: softwarecampament.wordpress.com

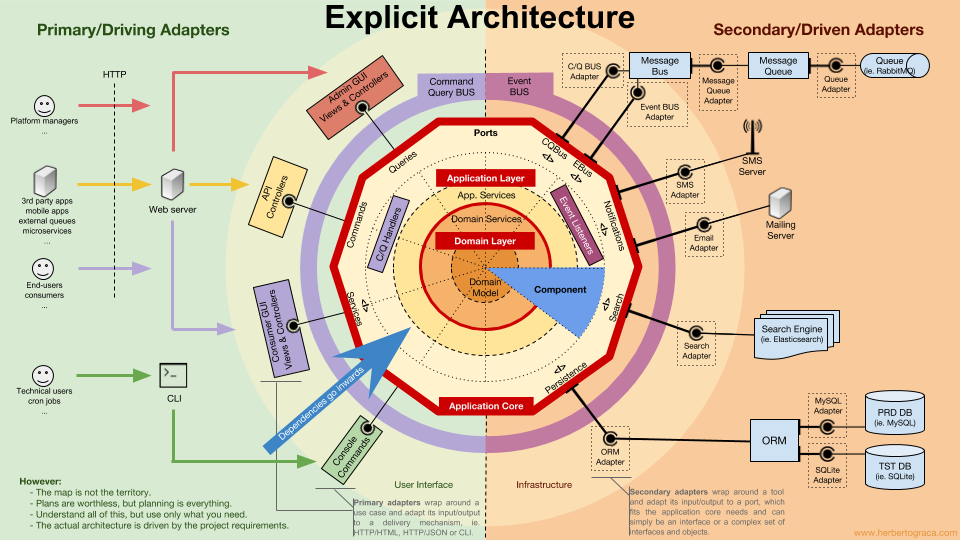

customization

source: herbertograca.com

differences

• naming
• "layers"

sources: maibornwolff.de and herbertograca.com

when to use?

• it depends!
• maybe not in small projects
• combination of
  • long life cycle
  • should be modified many times
  • changing technology or frameworks
• testing is important

sources: softwarecampament.wordpress.com

benefits

• independent of frameworks
• testable
• independent of UI
• independent of database
• independent of any external agency

sources: blog.cleancoder.com

disadvantage

• higher level of complexity
• build process performance
• over-engineering

sources: pguardiola.com and softwarecampament.wordpress.com

learnings

• takes a lot of time
• not accessible essential websites are ***
• a lot of inconsistency in www
• a lot of combinations are possible
• destroyed my lovely horizontal mvc
• new perspectives away from database/model driven

result

• no working code example
• 170+ lines of structered notes
• 30+ commits in git
• ?! hours of work
• found a lot of exciting resources
• not finished yet

side effects

• micro frontends
• test driven development
• CQRS
• event-driven architecture
